SPYNEL-F

SITUATIONAL AWARENESS THERMAL CAMERA

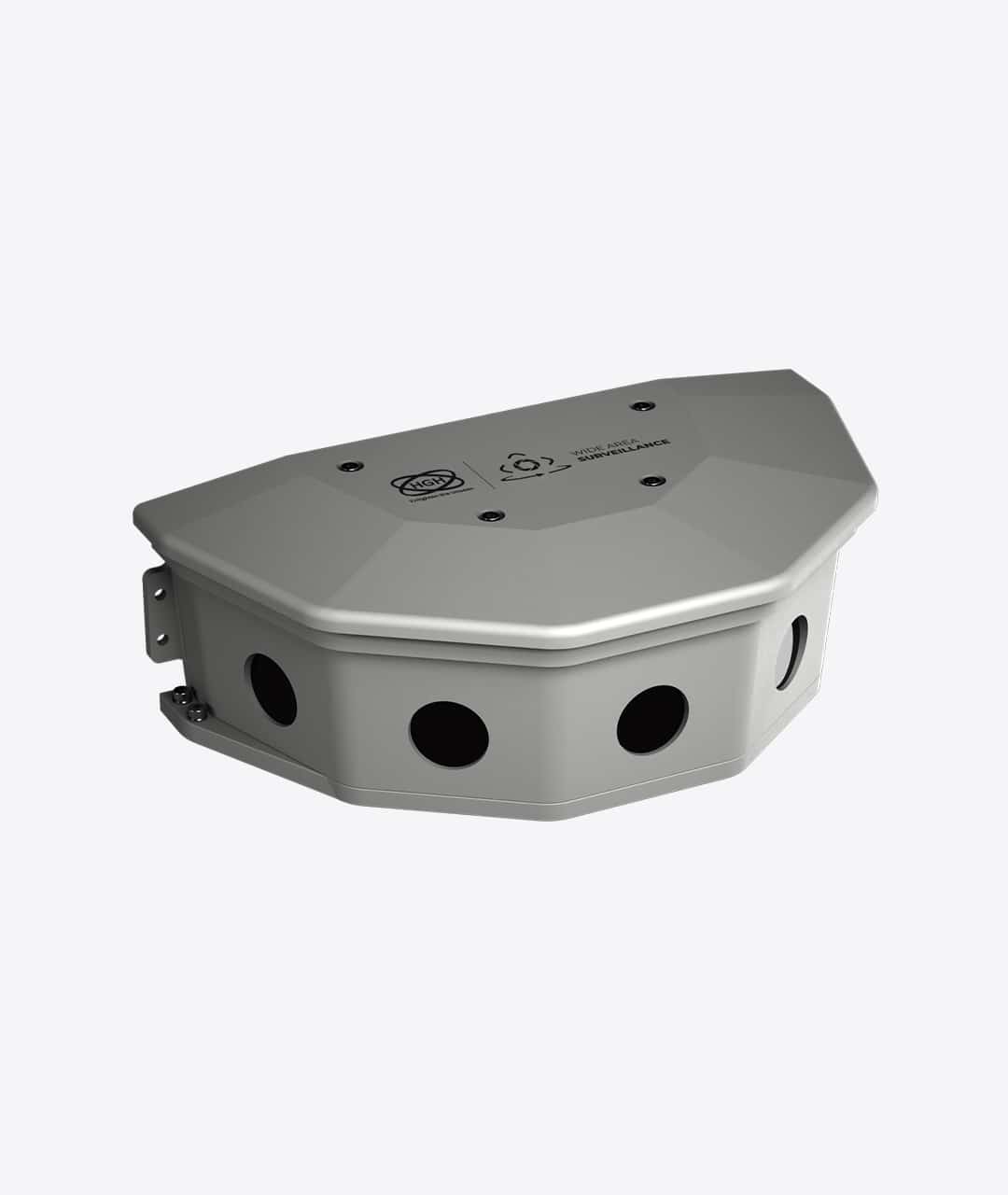

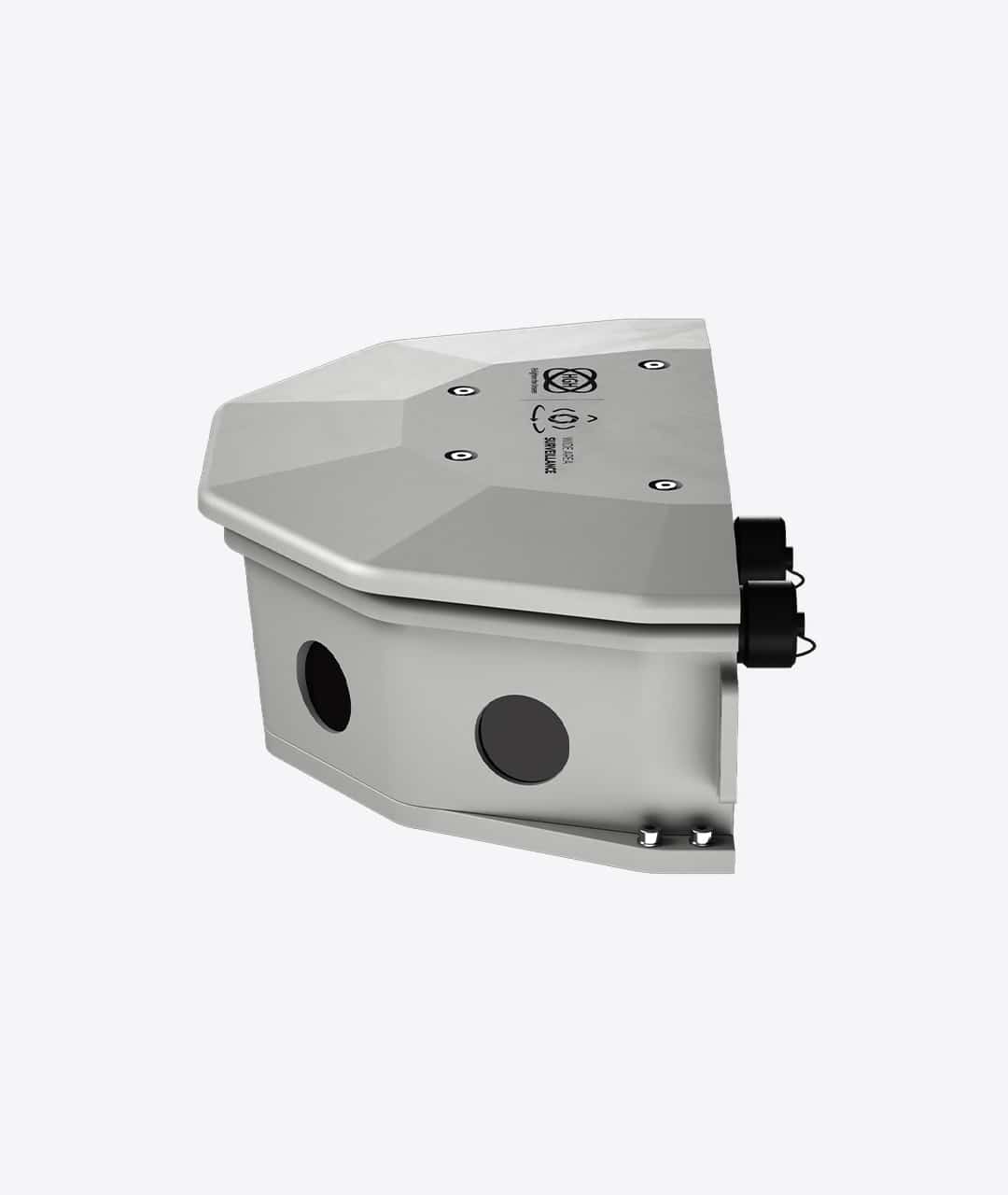

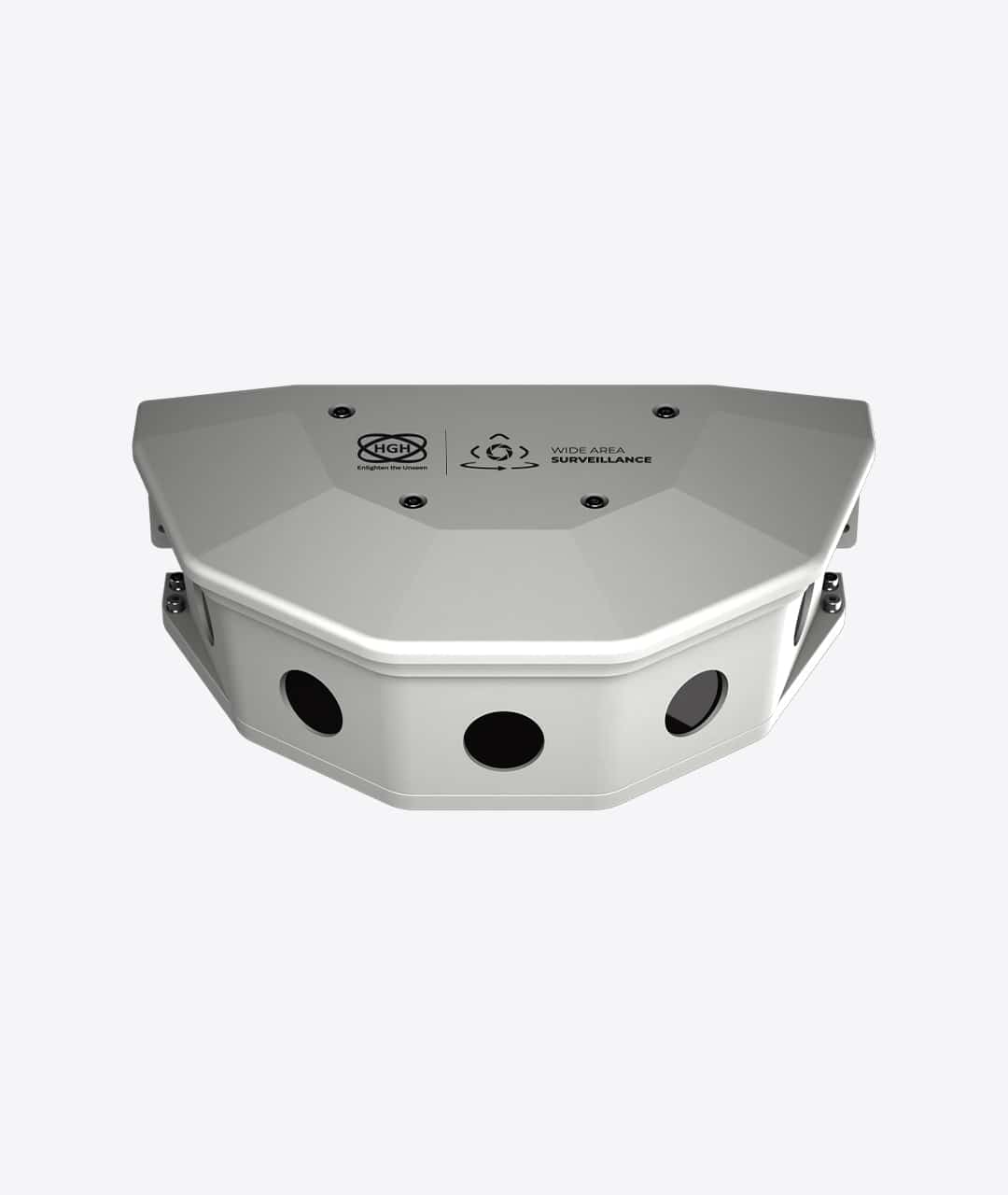

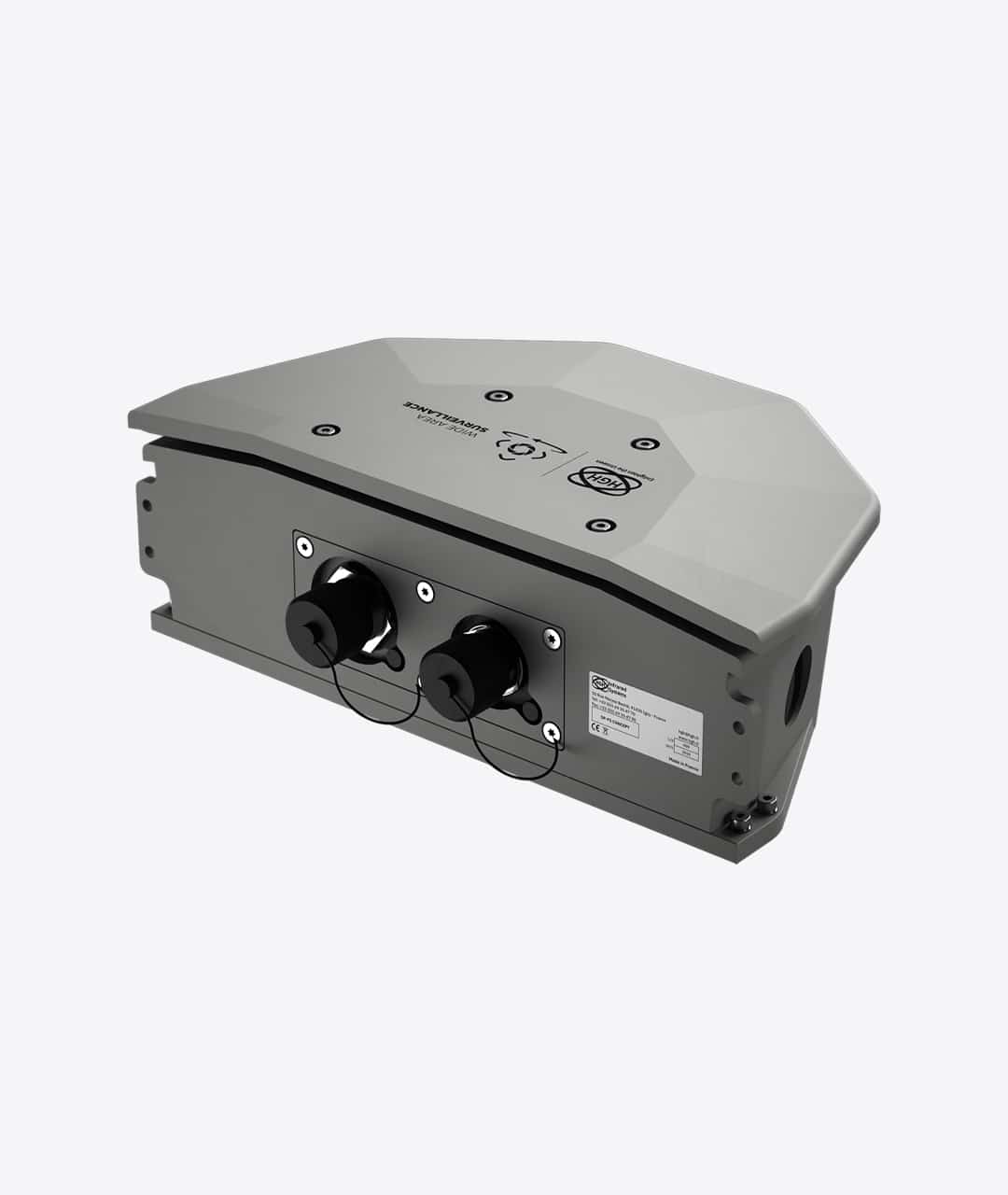

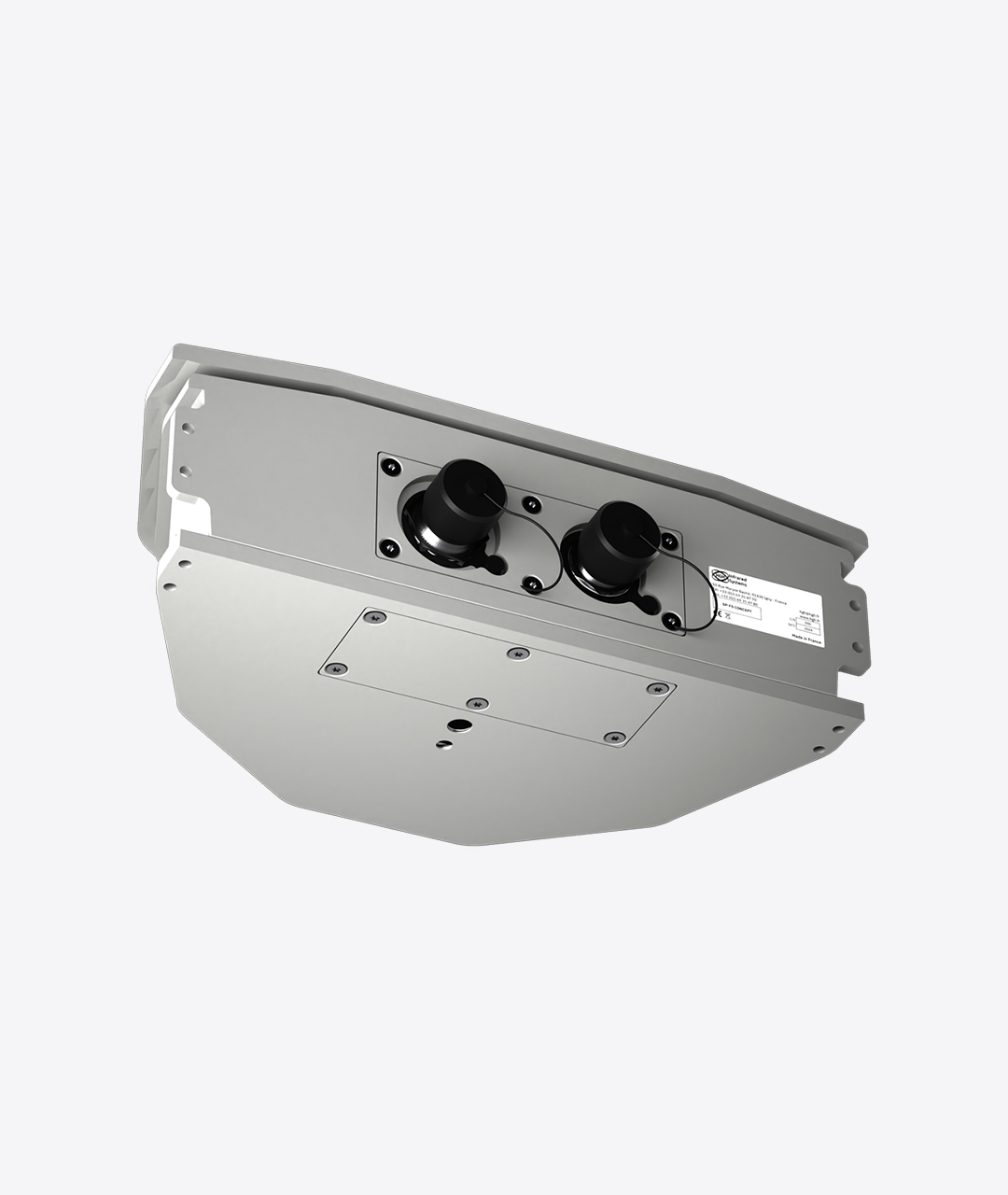

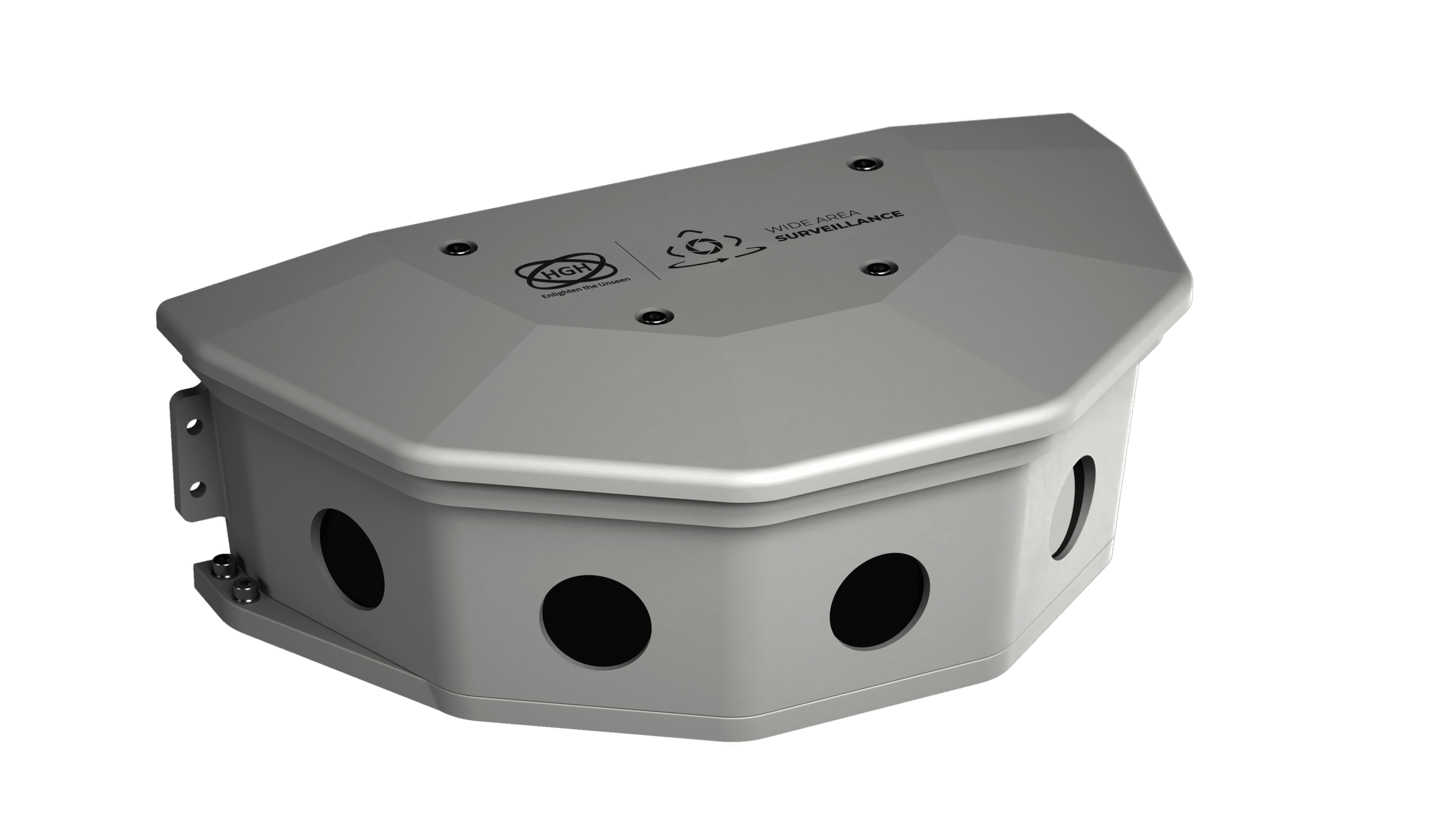

SPYNEL-F is a light and compact surveillance camera with full staring capability

The SPYNEL-F situational awareness thermal camera is a 24/7 surveillance solution featuring a 180° field of view and continuous staring capability. With exceptional image quality, a 10 Hz video frame rate, integrated digital stabilization, and compact dimensions, the SPYNEL-F is ideally suited for installation on USVs to ensure effective collision avoidance. Large ships, emerging islands, floating debris, and fast-moving boats are examples of obstacles encountered by USVs as they navigate increasingly crowded waters. Enhanced by the integrated CYCLOPE software and GAIA Artificial Intelligence, the SPYNEL-F solution enables automatic detection, precise tracking, and accurate classification of both air and surface targets.

SPYNEL-F : 10 SPYNEL-F Guide
CONTACT USDOWNLOAD PDF

SPYNEL

Main Benefits

INFRARED (IR) SENSOR

LWIR Uncooled Focal Plane Array

HIGH VIDEO FRAME RATE (10 Hz)

Full staring capability

DAY AND NIGHT SURVEILLANCE

Precise thermal panoramic images

HIGH ACCURACY IMAGES

High definition, high quality components

UNDETECTABLE AND UNJAMMABLE

Fully passive camera, no electromagnetic radiation

ALL THREATS DETECTED

Human, vehicle, ship, RHIB, UAV, simultaneously

WITHSTANDS EXTREME CONDITIONS

Heat, cold, wind, rain, sand, full darkness

INTEGRATED DIGITAL STABILIZATION

No need for gyrostabilization platform

MODULAR DESIGN

For 180 degree or 360 degree monitoring

SPYNEL-F 10

Product range

Detection range
Human: up to 400 m
Vehicle: up to 900 m
RHIB: up to 900 m

Recognition range
Human: up to 125 m
Vehicle: up to 250 m
RHIB: up to 250 m

Horizontal field of view
180°

Vertical field of view
40°

180° Video frame rate
10 Hz

Image resolution
1.5 M pixels

Weight
3 Kg

GET A QUOTE
    • *Up to
    • Detection range according to Johnson criterium and STANAG standards.
    • Range values represent optimal performance, which will vary depending on target size, clutter environment, atmospheric conditions and sensor operational settings
    • Above information is subject to changes without notice

SPYNEL

Technical specifications

180° Video
10 Hz Frame rate
1.5 Megapixels
    • Sensor
      Uncooled LWIR FPA
    • Image Resolution
      1.5 Mpixels 10 Hz frame rate

  • Integration capabilities
    ONVIF
    H264
    XML
    MIME
    TCP/IP
    Client/Server



  • Dimensions / weight                                     Weight: 3 kg Dimensions 300mm (W) x 200mm (D) x 100mm (H)
  • Vertical and horizontal FOV
    180° (H) x 40° (V)
