NV-2500 PORTABLE FIELD SYSTEM FOR TESTING ALL NIGHT VISION GOGGLES (AVAILABLE SOON)
Automated testing for night vision devices Designed to test monocular or binocular night vision binoculars, the NV-2500 system allows you to automatically perform all the standard tests of your JVN, with unrivaled precision and ease of use.

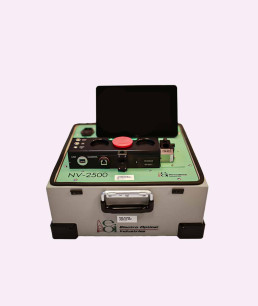

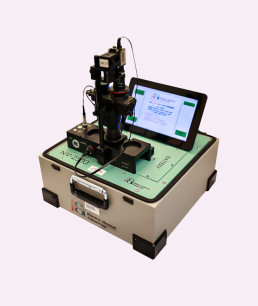

The system is controlled using an integrated touch screen, on which the user can view real-time video test results without having to look through goggles. Our unique system architecture provides best-in-class repeatability (in-situ and system-to-system).
Testing is automated, eliminating many errors in judgment and alignment, while reducing testing times. Manual versions of tests can also be selected to ensure backwards compatibility.
STANDARD TESTS
CARRIED OUT WITH AN NV-2500
INTEGRATED CONFIGURATION FUNCTION
INTENSIFIER CONTROL
CHECKING THE GAIN
FOCUS TO INFINITY
HIGH AND LOW LIGHT RESOLUTION
RESOLUTION IN INTENSE ILLUMINATION
DIOPTER TEST
LOCALIZED FAULTS
DISTORTION TEST
COLLIMATION TEST
CURRENT CONSUMPTION
Configuration of the JVN test system

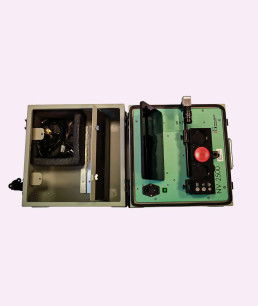

The unique architecture of the NV-2500 includes all the accessories needed to perform all standard JVN tests at no additional cost. Technical manuals and context-sensitive help are provided in digital format via the touchscreen to save time! The user can purchase an auxiliary printer to connect to the system and print their reports or simply download the reports to their device via the USB port.
Compatibility with night vision devices
- PVS-7
- PVS-14
- PVS-15
- PVS-18
- PVS-6
- PVS-9
- Mini monocular
- Compatible for testing on all Gen 2 and Gen 3 glasses and auto-trigger version
NV-2500
