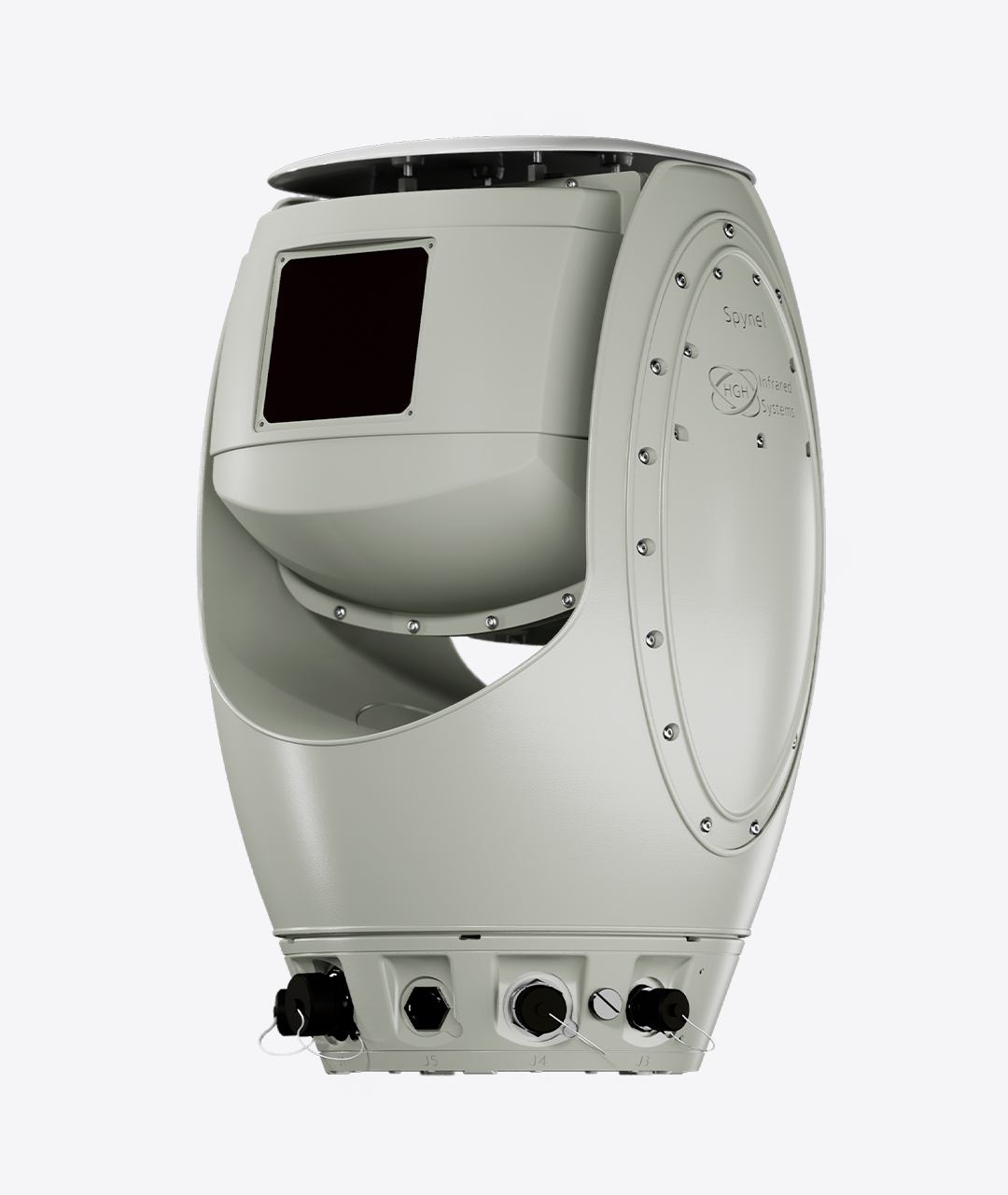

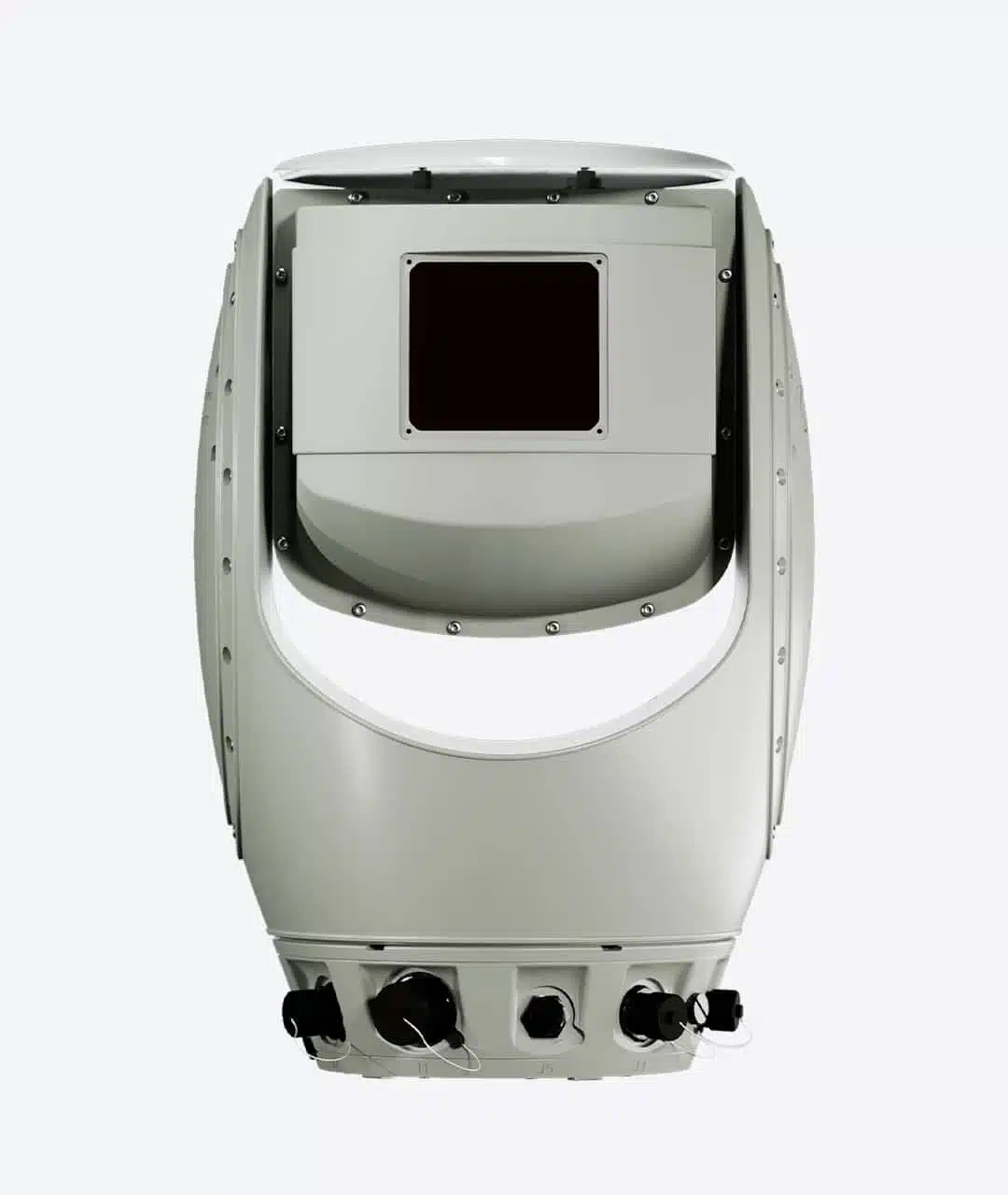

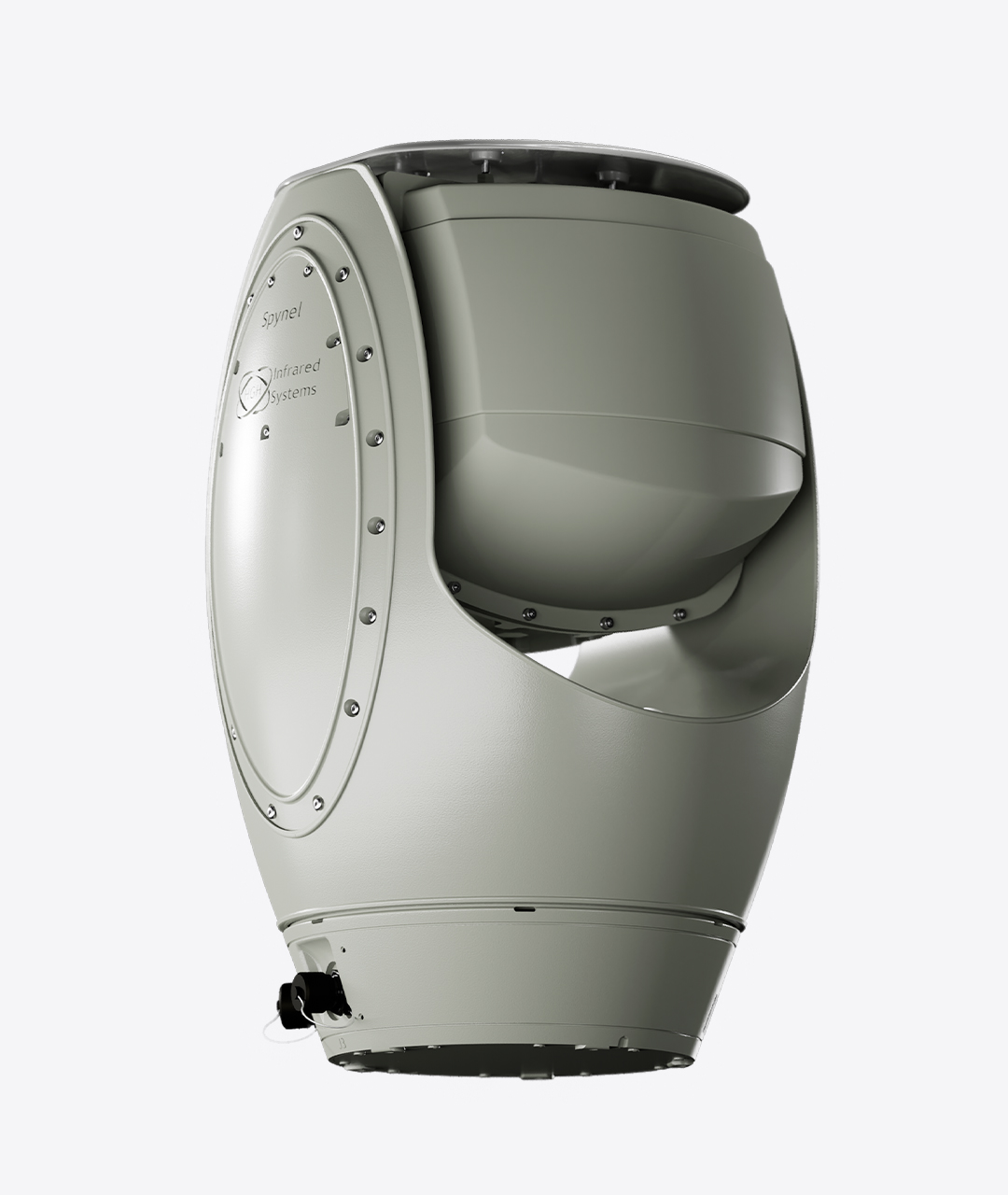

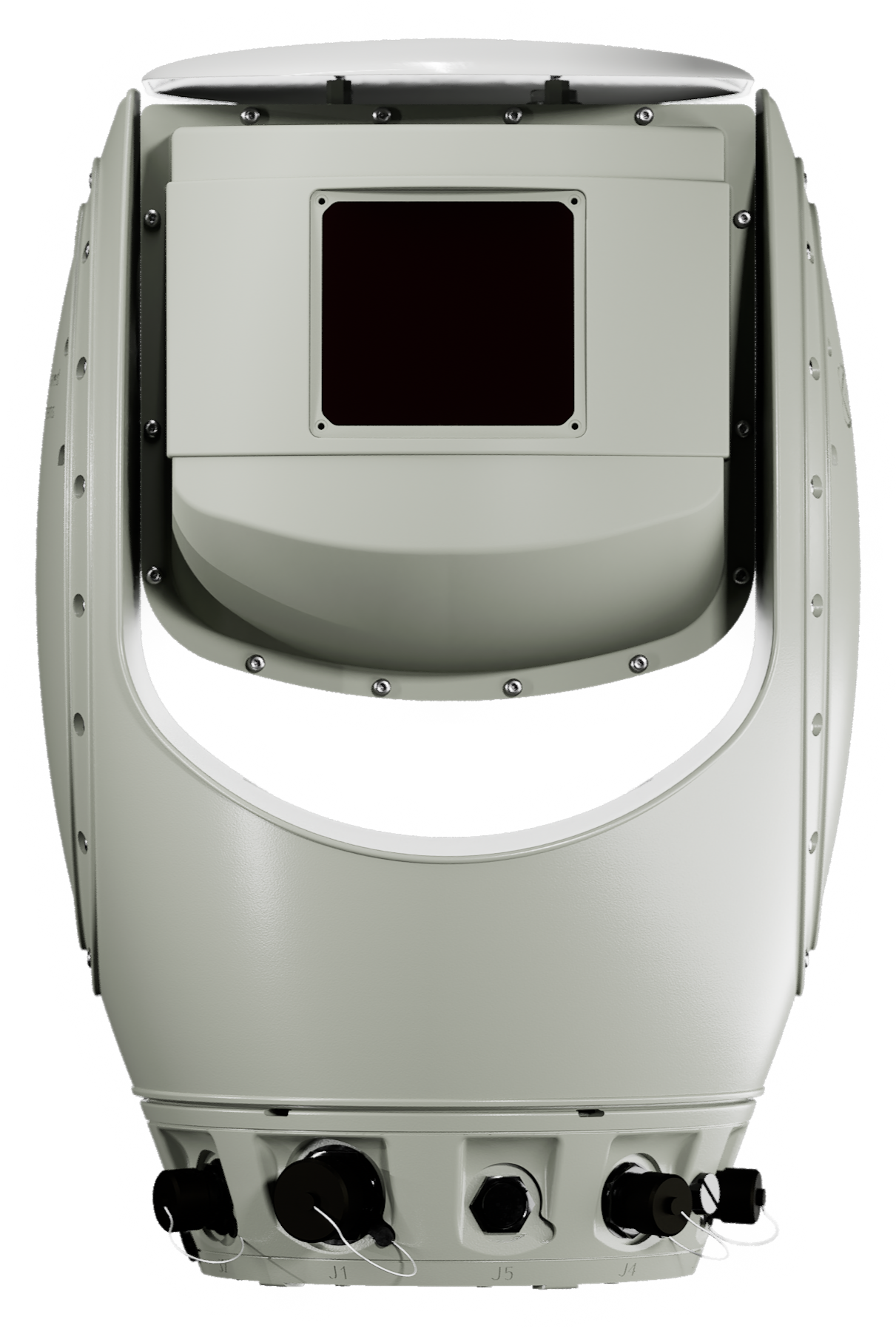

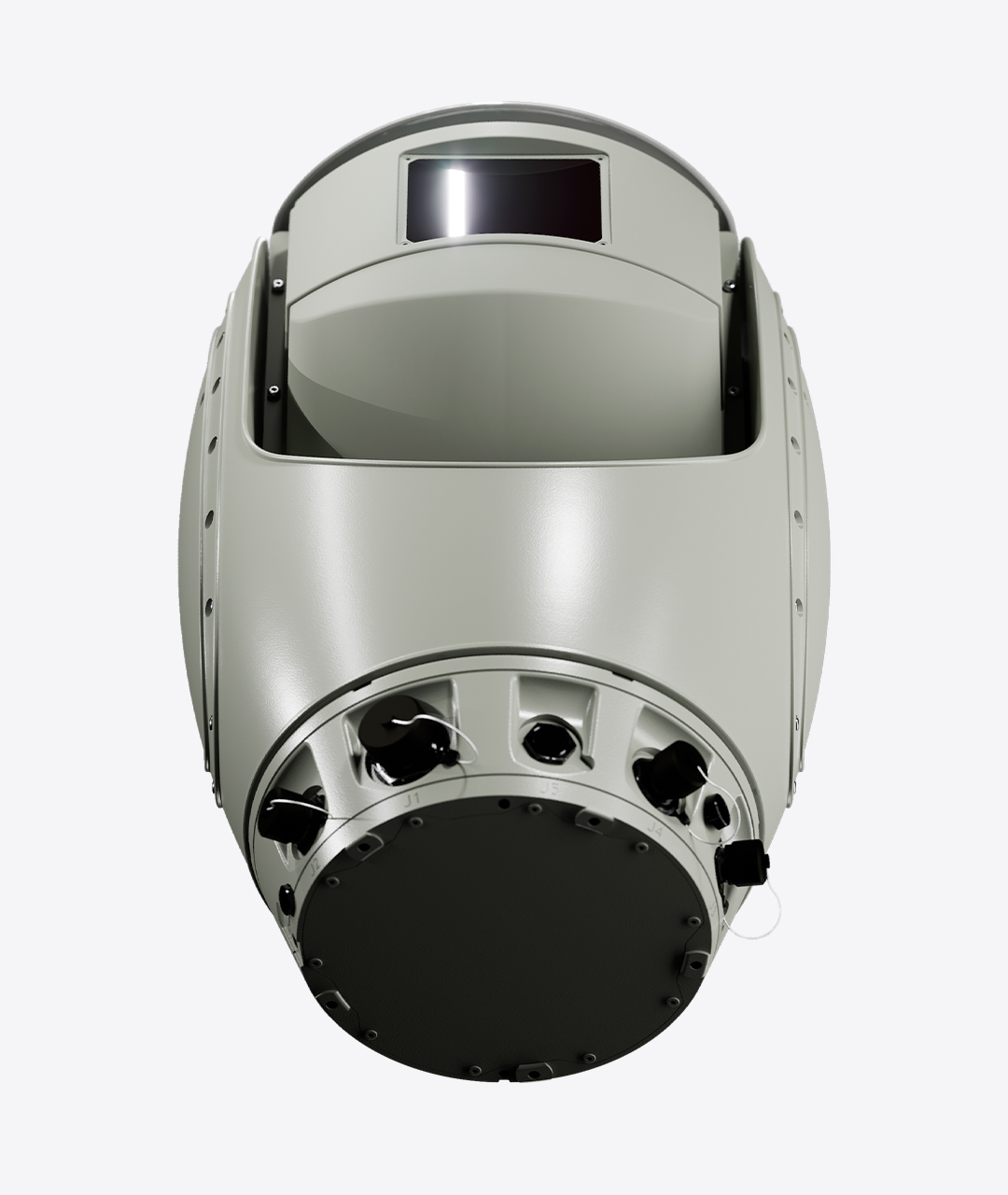

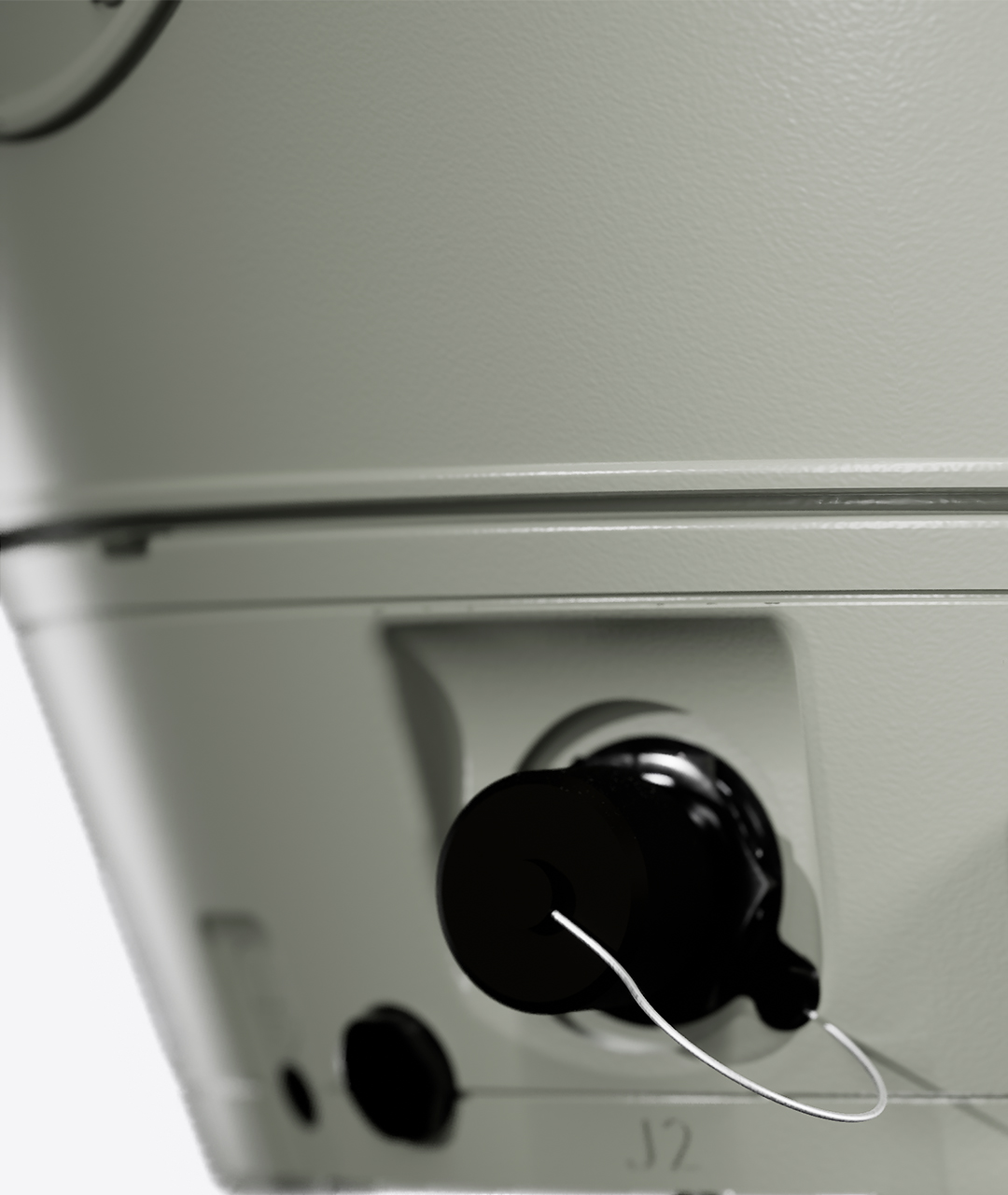

SPYNEL-S

PANORAMIC DEFENSE AND SECURITY CAMERA

SPYNEL-S is a 360° panoramic camera with the highest definition on the market.
This InfraRed Search & Track system is designed to answer the military and civil surveillance needs.

The passive wide-area surveillance system Spynel-S ensures real-time security against conventional and asymmetric threats. With CYCLOPE software, the Spynel-S solution provides automatic detection, precise tracking and accurate classification. SPYNEL-S integrates a Mid-Wave infrared (MWIR) sensor to capture up to 30 Mpix day and night video streams (640 x 512 focal plane array).

SPYNEL-S: 2000 6000 SPYNEL-S guide
Contact usDOWNLOAD PDF

SPYNEL-S

Main benefits

NIGHT & DAY SURVEILLANCE

Camera equipped with the latest infrared sensor

PANORAMIC VIEW

360° surveillance in real-time

UNDETECTABLE

Fully passive camera, no electromagnetic radiation

ALL THREATS DETECTED & CLASSIFIED

Human, vehicle, ship, UAV, RHIB, simultaneous attacks

WIDE AREA SURVEILLANCE

Up to 10 KM vehicle detection range

HIGH DEFINITION IMAGES

High definition, high quality components

EASY TO DEPLOY

Fast integration into existing security systems

withstands extreme conditions

Heat, cold, wind, rain, sand, full darkness

SPYNEL-S

Product range

SPYNEL-S 2000

Detection range
Human: up to 1.5 km
Vehicle: up to 3.5 km
RHIB: up to 3.5 km

Recognition range
Human: up to 500 m
Vehicle: up to 1.2 km
RHIB: up to 1.2 km

Horizontal field of view
360°

Vertical field of view
20°

Instantaneous field of view (IFOV)
0.6 x 0.6 mrad x mrad

360° scanning speed
2 rps (360°/0.5sec)

Image resolution
11 500 (H) x 640 (V)

Infrared detector
Mid Wave Infrared (MWIR) 640×512 FPA

Get a quote

SPYNEL-S 6000

Detection range
Human: up to 6 km
Vehicle: up to 10 km
RHIB: up to 10 km

Recognition range
Human: up to 2 km
Vehicle: up to 4 km
RHIB: up to 4 km

Horizontal field of view
360°

Vertical field of view

Instantaneous field of view (IFOV)
0.15 x 0.15 mrad x mrad

360° scanning speed
0.5 rps (360°/ 2sec)

Image resolution
46 000 (H) x 640 (V)

Infrared detector
Mid Wave Infrared (MWIR) 640×512 FPA

Get a quote

SPYNEL-S

360° infrared camera detection performances

Human Detection Range

Spynel-S 8000 6 km* 60 km
Spynel-S 2000 1.5 km* 15 km

Vehicle / RHIB Detection Range

Spynel-S 8000 10 km* 100km
Spynel-S 2000 3.5 km* 35km

Human Recognition Range

Spynel-S 6000 2 km* 20 km
Spynel-S 2000 500 m* 3 km

Vehicle / RHIB Recognition Range

Spynel-S 6000 4 km* 40km
Spynel-S 2000 1.2 km* 12km
  • *Up to
  • Detection range according to Johnson criterium and STANAG standards.
  • Range values represent optimal performance, which will vary depending on target size, clutter environment, atmospheric conditions and sensor operational settings
  • Above information is subject to changes without notice

Need help

to choose your SPYNEL-S?

Contact us

360° PANORAMIC DETECTION

SPYNEL are high quality level wide-area surveillance solutions. The camera acquires in real-time panoramic thermal images. The automatic detection, tracking and classification is powered by the integrated CYCLOPE sofware. SPYNEL-S integrates a Mid Wave Infrared (MWIR) Megapixel focal plane array and an InfraRed Search&Track sensor (IRST) with the highest resolution on the market.

Perimeter security: long distance panoramic surveillance camera
Available in land and maritime models, Spynel-S® can withstand extreme weather and temperatures. It can be used as a reliable and cost-effective standalone perimeter security solution. Spynel infrared camera solution secures an entire installation thanks to its multiple intrusions detection and tracking capabilities over 360°.





SPYNEL-S

Technical specifications

360° Scanning
30 Megapixels
Sensor
MWIR 640x512 FPA
with stirling microcooler
HD panoramic thermal camera
Up to 46 000 (H) x 640 (V) image resolution
Panoramic surveillance
360 degrees rotation
Up to 2 rps (360°/0.5sec) scanning speed
Integration capabilities
ONVIF
H264
XML
MIME
TCP/IP
Client/Server
Dimensions / weight
Weight: <40 kg
Dimensions (Dia x H): 385 mm x 580 mm
Vertical specifications
± 45° vertical motorized tilt
Vertical FOV: 20° to 5°
Extreme conditions design
Temperature range: -40°C to +71°C
Fully waterproof

Spynel-S is a panoramic, long-range, wide area surveillance system designed to detect, classify and track automatically any type of threats, night and day.

Continuously rotating at up to 2 revolution/sec, Spynel-S provides powerful situational awareness through a 360-degree visualization of the surroundings. As a fully passive thermal sensor, it is invisible to intruders, not vulnerable to camouflage nor jamming, contrary to radar technologies. With a large Mid Wave Infrared (MWIR) focal plane array, Spynel-S exhibits high performance, capturing 30Mpix video stream

Equipped with our Cyclope advanced threat detection software, the 360° Infrared (IR) sensor allows early target discrimination over extremely wide areas, at night, during the day, whatever the weather. An unlimited number of tracks are simultaneously detected and identified. No exception is made for hardly detectable threats like swimmers, RIBs, low altitude air targets, UAVs or stealth aircrafts.

SPYNEL-S is a must-have solution for wide area surveillance, continuous perimeter security and critical infrastructure protection, but also military applications such as forward operation base protection (FOB), or self-protection of ships.

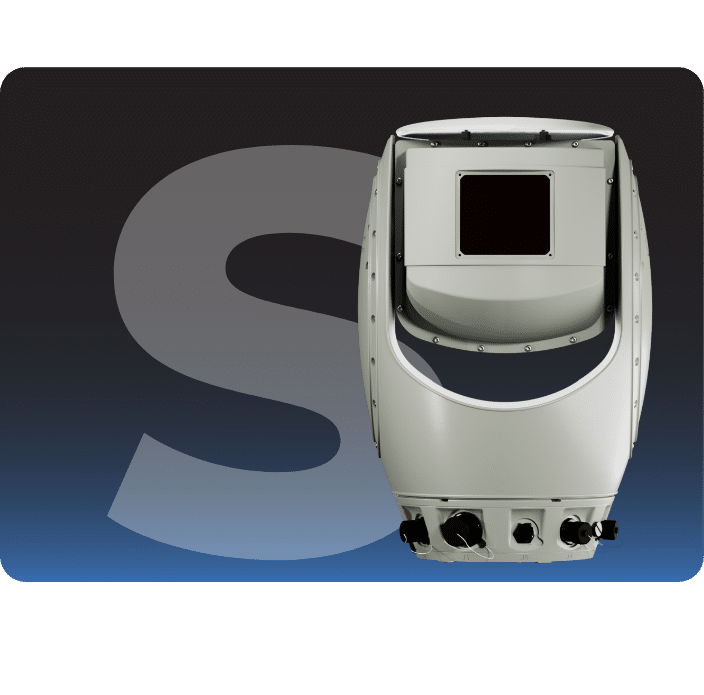

tab description image
SPYNEL-S 2000SPYNEL-S 6000
Horizontal FOV360°360°
Vertical FOV20°
Vertical motorized tilt± 45° (motorized)± 45° (motorized)
IFOV0.6 x 0.6 mrad x mrad0.15 x 0.15 mrad x mrad
Scanning speed2 rps (360°/0.5sec)0.5 rps (360°/ 2sec)
Detector typeMWIR 640x512 FPAMWIR 640x512 FPA
CoolingStirling microcoolerStirling microcooler
Image resolution11 500 (H) x 640 (V)46 000 (H) x 640 (V)
Video output and controlIPIP
Dimensions (Dia x H)385 mm x 580 mm385 mm x 580 mm
Weight< 40 kg< 40 kg
Operating temperature-40°C to +71°C-40°C to +71°C
Protection standardIP 66IP 66
Power supply24V DC / 10 Amps24V DC / 10 Amps
Detection range for

Human:

Vehicle:

RHIB:



Up to 1.5 km


Up to 3.5 km


Up to 3.5 km



Up to 6 km


Up to 10 km


Up to 10 km

Detection ranges according to Johnson criterium and STANAG standards

CYCLOPE is the automatic intrusion detection, classification and tracking software analysing
the 360-degree high resolution video stream captured by the SPYNEL camera.



> Download Cyclope brochure
> Cyclope video



Cyclope main benefits

  • Signal processing based on 15 years experience for all applications
  • One single core software to ensure reliability and robustness
  • All-In-One Cyclope Server processing unit (Hardware and Software)
  • Additional set of plugins



Cyclope main features

  • Automatic detection and classification
  • Automatic tracking
  • All ground, air and maritime targets detected
  • Manual or automatic detection parameters setup (no operator adjustment)
  • 3D detection
  • Custom zones definition
  • Custom threats definition
  • Crossing line detection function
  • Alarm management editor
  • New threats automatic visualisation and tracking



Specific algorithms

  • AI depp learning algorithm for automatic threat classification
  • Sky detection capabilities in cluttered environment
  • Specific fire detection
  • Long range tracking motion detection (any targets and thermal contrasts supported)



Alarm Editor, custom alarm definition by:

  • Class
  • Zone
  • Dimension
  • Trend
  • Intensity
  • Speed
  • Direction



Specific actions automatic alarms:

  • Recording
  • Email
  • XML
  • Specific bookmark…



Analysis

  • Intrusion bookmarks
    • Manual
    • Automatic
  • Post-analysis
  • Easy timeshift function (replay)
  • 360° recording
  • Geographic targets position detection
  • Intrusion instantaneous mapping

cyclope interface

Cyclope interface

cyclope detection tracking

Detection & tracking

cyclope sky detection

Sky detection

cyclope motion detection

Motion detection

cyclope bookmarks

Bookmarks

cyclope geographic position

Geographic position



GAIA: automatic threats classification based on Artificial Intelligence

Integrated into the SPYNEL long-distance surveillance solutions, the newest GAIA Artificial Intelligence processing features unique capabilities in the market in terms of automatic classification of objects within panoramic thermal images. The AI module makes use of three patent-pending neuronal networks designed to recognize patterns for maritime, land and air surveillance applications. The automatic classification is operational at long-distance, on a very wide range of land and sea targets, from just a few pixels to very large objects.

The unique combination of GAIA Artificial Intelligence with Cyclope video analytics provides advanced detection, tracking and classification of any kind of threats. Whilst the use of Artificial Intelligence drastically lowers false alarm rate for wide area surveillance applications, it improves human decision efficiency and decreases the use of operational means.

From detection to classification : the 4 steps of the GAIA process

Artificial Intelligence main benefits

  • False alarm rate highly reduced
  • Custom parameters easy and quick to set up
  • Real-time information
  • Improve reliability
  • Facilitate human decision
  • Reduces the human resources costs (security crews)

Gaïa key features

  • First threat appearance detection and classification from (no latency)
  • Support any kind of threat size: from few pixels to very large objects
  • Any distance detection: short, medium and long range
  • Stationnary and/or moving objects detection
  • Alarm confirmations:
    • Very fast moving objects
    • Short range
    • Discontinuous visibility due to obstacles (foliage, trees…)
  • Very low false alarm rate in complex conditions:
    • Moving vegetation,
    • Animals,
    • High sea state,
    • Sun glints…
  • Improved target range assessment
  • Multiple classes available: human, vehicle, buoy, RIB, sailing ship…
  • Ability to detect humans in any position and/or partially hidden objects
  • Scalable customizable algorithm :
    • New classes (required for a specific Customer application)
    • Algorithm optimization

fence intrusion

Alarm management Module

Automatic threats classification according to multiple conditions (GAIA classification, dimensions, trend, intensity, speed, trajectory, target class, size, virtual fence crossing, distance…)

Automatic Alarms to trigger specific actions (recording, email, XML, specific bookmark…)

GAIA Artificial Intelligence is boosted by the I2Q image processing library allowing to achieve superior day/night image quality whatever the environmental conditions. I2Q image processing includes multiple algorithms to improve user experience such as sun glint reduction, smart denoising, local contrast image enhancement and more.

I²QTM Library for smart image enhancement

Image processing 1 1

Original image
(satured zones within the panorama)

Image processing 1 2

I²Q quality enhancement
(no saturation over 360°)

Image processing

Original image

Image processing

After I²Q terrestrial pre-processing

Image processing

Original image

Image processing 3 2

After I²Q distorsion correction
(Image stitching – distorsion correction)

Download PDFContact us
