GAS COMPRESSOR STATION SURVEILLANCE

Passive infrared surveillance for critical energy infrastructure

Gas compressor stations play a vital role in natural gas transportation, ensuring consistent pressure and flow across long-distance pipelines. With their strategic importance and explosive risk zones (ATEX), securing these facilities requires advanced, reliable, and passive surveillance solutions.

Our solution? SPYNEL-M is a compact panoramic thermal imaging system that offers 360° automatic intrusion detection without emitting any Electro-Magnetic signal — making it perfectly suited for explosive-risk environments. Already deployed at multiple sites across Europe, SPYNEL-M enhances situational awareness, lowers false alarms, and integrates smoothly with existing security systems.

Challenges in securing compressor stations

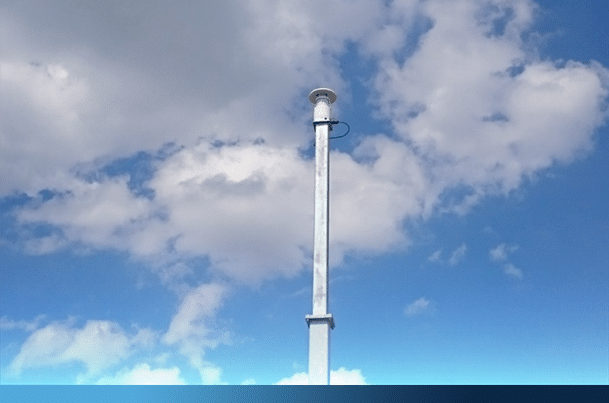

tower_gas_station_compressor

Security and operational constraints of compressor stations

Compressor stations face a unique combination of technical, environmental, and safety challenges:

  • High-value targets: As critical infrastructure, they are vulnerable to terrorism, vandalism, or theft, with potential national-level consequences.
  • Explosive zones (ATEX): Traditional active sensors like radar can’t be safely used due to the risk of ignition.
  • False alarms: Remote locations often lead to high rates of false alerts caused by animals or environmental movements.
  • Large areas: Covering 200m x 400m, these sites are costly and complex to monitor using standard camera networks.
  • System compatibility: New surveillance tools must integrate with existing VMS platforms for unified threat management.

Need help securing your gas compressor station?

Get your customized solution

Passive 360° thermal solution for Gas compressor stations

With SPYNEL-M Panoramic Infrared Camera

HGH Infrared Systems has developed an innovative panoramic solution detecting and categorizing long-range threats. The SPYNEL infrared camera range protects any kind of critical infrastructures or military assets thanks to a 360° camera. Fully passive, the SPYNEL camera ensures real-time panoramic video and automatic detection, classification & tracking.

Recommended productProduct selectionCONTACT

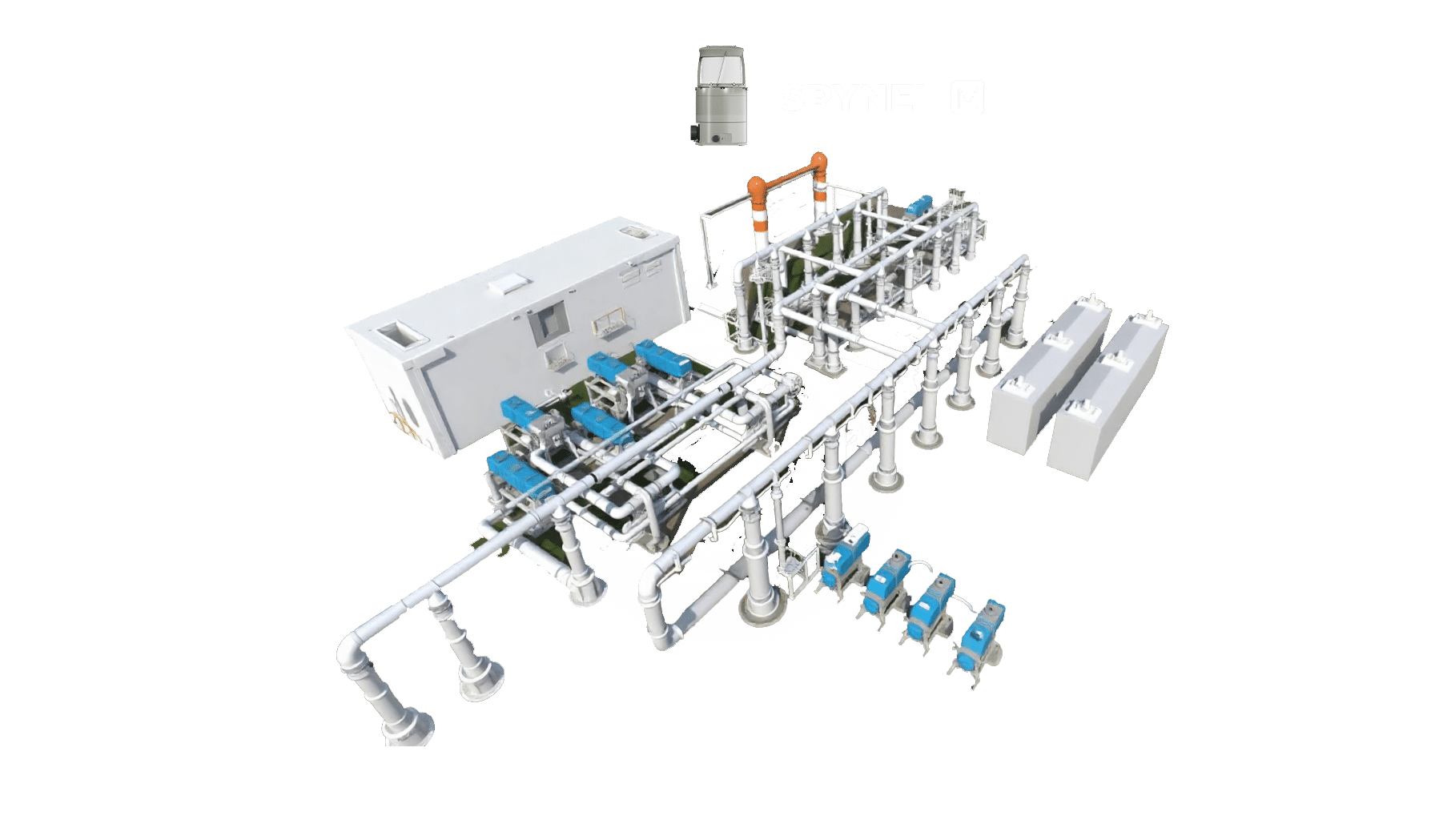

One sensor, full site coverage

HGH’s SPYNEL-M meets these surveillance challenges with a single panoramic infrared camera:

  • 360° thermal imaging for full site coverage, placed centrally in the station
  • Human detection up to 700m, with classification at 250m
  • Differentiated area monitoring: Tracks intrusions across perimeter fences and restricted internal zones
  • No blind spots: Flat layout of stations allows for clear line-of-sight monitoring
  • CYCLOPE software integration: Delivers automatic detection, GPS tracking, and threat classification in real-time
  • ONVIF-compliant: Seamless connection to existing Video Management Systems

In some deployments, SPYNEL-M operates alone as the primary detection layer, while in others, it works alongside smart fences or buried sensors for enhanced perimeter validation.

human-classification-gas-compression-site-

Key benefits: Why choose SPYNEL-M?

Passive and ATEX-safe:

Unlike radars, SPYNEL-M emits no Electro-Magnetic signals, ensuring compliance in explosive-risk environments

Low false alarm rate:

AI filtering of wildlife and non-threatening movement avoids unnecessary alerts

Minimal infrastructure needs:

One unit covers the entire facility, reducing camera count and installation cost

Supports PTZ confirmation:

CYCLOPE software can slew-to-cue PTZ cameras for visual threat confirmation

Maintenance-free operation:

Proven long-term reliability, even in harsh outdoor conditions

Seamless integration:

Compatible with existing VMS interfaces via ONVIF

Autonomous alerts:

No on-site operator needed; automatic alarm and recording management

Full tracking history:

All detections logged with geolocation and movement patterns

SPYNEL-M enhances the protection of gas compressor stations with a cost-effective, passive, and fully integrated thermal surveillance solution. By reducing false alarms, streamlining infrastructure, and improving threat detection, it strengthens national energy security while lowering operational burdens.
