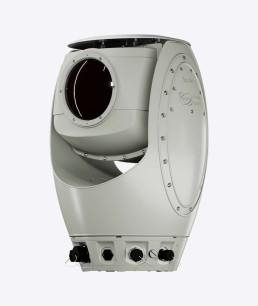

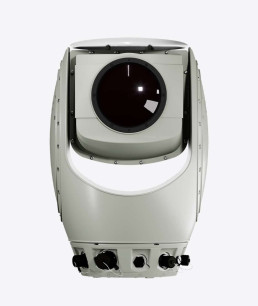

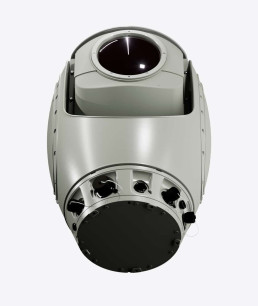

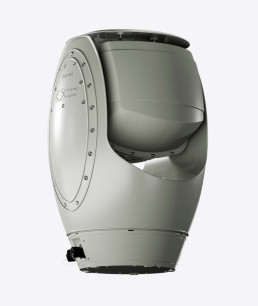

SPYNEL-X
PANORAMIC DEFENSE AND SECURITY CAMERA
SPYNEL-X is a 360° panoramic camera with the highest definition on the market.
This InfraRed Search & Track system is designed to answer the military and civil surveillance needs.
The passive wide-area surveillance system Spynel-X ensures unprecedented real-time security against conventional and asymmetric threats. It gathers the latest innovations in thermal sensing into a field-proven and solid mechanical design. SPYNEL-X can replace up to 90 HD MWIR cameras on its own: one single IR camera provides 24/7 early human intrusion detections over a 18km-diameter area, with a resolution of 120Mpix.
SPYNEL-X
Main benefits
NIGHT & DAY SURVEILLANCE
Camera equipped with the latest infrared sensor
PANORAMIC VIEW
360° surveillance in real-time
UNDETECTABLE
Fully passive camera, no electromagnetic radiation
ALL THREATS DETECTED & CLASSIFIED
Human, vehicle, ship, UAV, RHIB, simultaneous attacks
WIDE AREA SURVEILLANCE
Up to 12.5 KM vehicle detection range
HIGH DEFINITION IMAGES
Up to 120 MPixels
EASY TO DEPLOY
Fast integration into existing security systems
withstands extreme conditions
Heat, cold, wind, rain, sand, full darkness
SPYNEL-X
Product range
SPYNEL-X 3500
Detection range
Human: up to 2.5 km
Vehicle: up to 5 km
RHIB: up to 5 km
Recognition range
Human: up to 900 m
Vehicle: up to 1.7 km
RHIB: up to 1.7 km
Horizontal field of view
360°
Vertical field of view
20°
Instantaneous field of view (IFOV)
0.3 x 0.3 mrad x mrad
360° scanning speed
2 rps (360°/0.5sec)
Image resolution
23 000 (H) x 1280 (V)
Infrared detector
MWIR Megapixel FPA
SPYNEL-X 6000
Detection range
Human: up to 5 km
Vehicle: up to 9 km
RHIB: up to 9 km
Recognition range
Human: up to 1.8 km
Vehicle: up to 3.3 km
RHIB: up to 3.3 km
Horizontal field of view
360°
Vertical field of view
10°
Instantaneous field of view (IFOV)
0.15 x 0.15 mrad x mrad
360° scanning speed
1 rps (360°/sec)
Image resolution
46 000 (H) x 1280 (V)
Infrared detector
MWIR Megapixel FPA
SPYNEL-X 8000
Detection range
Human: up to 9 km
Vehicle: up to 12.5 km
RHIB: up to 12.5 km
Recognition range
Human: up to 3.3 km
Vehicle: up to 6 km
RHIB: up to 6 km
Horizontal field of view
360°
Vertical field of view
5°
Instantaneous field of view (IFOV)
0,08mrad x 0,08mrad
360° scanning speed
0.5 rps (360°/2sec)
Image resolution
92 000 (H) x 1280 (V)
Infrared detector
MWIR Megapixel FPA
SPYNEL-X
360° infrared camera detection performances
Human Detection Range
Vehicle / RHIB Detection Range
Human Recognition Range
Vehicle / RHIB Recognition Range
- *Up to
- Detection range according to Johnson criterium and STANAG standards.
- Range values represent optimal performance, which will vary depending on target size, clutter environment, atmospheric conditions and sensor operational settings
- Above information is subject to changes without notice
360° PANORAMIC DETECTION
SPYNEL-X integrates a Mid Wave Infrared (MWIR) Megapixel focal plane array and is the InfraRed Search&Track sensor (IRST) with the highest resolution on the market.
SPYNEL-X
Technical specifications
The passive wide-area surveillance system Spynel-X ensures unprecedented real-time security against conventional and asymmetric threats. It gathers the latest innovations in thermal sensing into a field-proven and solid mechanical design.
SPYNEL-X can replace up to 90 HD MWIR cameras on its own: one single IR camera provides 24/7 early human intrusion detections over a 16km-diameter area, with a resolution of 120Mpix.
Equipped with our Cyclope advanced threat detection software, the 360° IR camera allows early target discrimination over extremely wide areas, at night, during the day, whatever the weather. An unlimited number of tracks are simultaneously detected and identified; no exception is made for hardly detectable threats like swimmers, RIBs, low altitude air targets, UAVs or stealth aircrafts.
SPYNEL-X is the topmost solution for wide area surveillance, continuous perimeter security and critical infrastructure protection, but also military applications such as FOB protection, or self-protection of ships.
| SPYNEL-X 3500 | SPYNEL-X 6000 | SPYNEL-X 8000 | |
|---|---|---|---|
| Horizontal FOV | 360° | 360° | 360° |
| Vertical FOV | 20° | 10° | 5° |
| Vertical motorized tilt | ± 45° | ± 45° | ± 45° |
| IFOV | 0.3 x 0.3 mrad x mrad | 0.15 x 0.15 mrad x mrad | 0.08 x 0.08 mrad x mrad |
| Scanning speed | 2 rps (360°/0.5sec) | 1 rps (360°/ sec) | 0.5 rps (360°/2sec) |
| Detector type | MWIR megapixel FPA | MWIR megapixel FPA | MWIR megapixel FPA |
| Cooling | Stirling microcooler | Stirling microcooler | Stirling microcooler |
| Image resolution | 23 000 (H) x 1280 (V) | 46 000 (H) x 1280 (V) | 92 000 (H) x 1280 (V) |
| Video output and control | IP | IP | IP |
| Dimensions (Dia x H) | 385 mm x 580 mm | 385 mm x 580 mm | 385 mm x 580 mm |
| Weight | < 40 kg | < 40 kg | < 40 kg |
| Operating temperature | -40°C to +71°C | -40°C to +71°C | -40°C to +71°C |
| Indice de protection | IP 66 | IP 66 | IP 66 |
| Power supply | 24V DC / 10 Amps | 24V DC / 10 Amps | 24V DC / 10 Amps |
| Detection range for Human: Vehicle: RHIB: | Up to 2.5 km Up to 5 km Up to 5 km | Up to 5 km Up to 9 km Up to 9 km | Up to 9 km Up to 12.5 km Up to 12.5 km |
Detection ranges according to Johnson criterium and STANAG standards
CYCLOPE is the automatic intrusion detection, classification and tracking software analysing
the 360-degree high resolution video stream captured by the SPYNEL camera.
> Download Cyclope brochure
> Cyclope video
Cyclope main benefits
- Signal processing based on 15 years experience for all applications
- One single core software to ensure reliability and robustness
- All-In-One Cyclope Server processing unit (Hardware and Software)
- Additional set of plugins
Cyclope main features
- Automatic detection and classification
- Automatic tracking
- All ground, air and maritime targets detected
- Manual or automatic detection parameters setup (no operator adjustment)
- 3D detection
- Custom zones definition
- Custom threats definition
- Crossing line detection function
- Alarm management editor
- New threats automatic visualisation and tracking
Specific algorithms
- AI deep learning algorithm for automatic threat classification
- Sky detection capabilities in cluttered environment
- Specific fire detection
- Long range tracking motion detection (any targets and thermal contrasts supported)
Alarm Editor, custom alarm definition by:
- Class
- Zone
- Dimension
- Trend
- Intensity
- Speed
- Direction
Specific actions automatic alarms:
- Recording
- XML
- Specific bookmark…
Analysis
- Intrusion bookmarks
- Manual
- Automatic
- Post-analysis
- Easy timeshift function (replay)
- 360° recording
- Geographic targets position detection
- Intrusion instantaneous mapping
Cyclope interface
Detection & tracking
Sky detection
Motion detection
Bookmarks
Geographic position
GAIA: automatic threats classification based on Artificial Intelligence
Integrated into the SPYNEL long-distance surveillance solutions, the newest GAIA Artificial Intelligence processing features unique capabilities in the market in terms of automatic classification of objects within panoramic thermal images. The AI module makes use of three patent-pending neuronal networks designed to recognize patterns for maritime, land and air surveillance applications. The automatic classification is operational at long-distance, on a very wide range of land and sea targets, from just a few pixels to very large objects.
The unique combination of GAIA Artificial Intelligence with Cyclope video analytics provides advanced detection, tracking and classification of any kind of threats. Whilst the use of Artificial Intelligence drastically lowers false alarm rate for wide area surveillance applications, it improves human decision efficiency and decreases the use of operational means.
From detection to classification : the 4 steps of the GAIA process
Artificial Intelligence main benefits
- False alarm rate highly reduced
- Custom parameters easy and quick to set up
- Real-time information
- Improve reliability
- Facilitate human decision
- Reduces the human resources costs (security crews)
Gaïa key features
- First threat appearance detection and classification with no latency
- Support any kind of threat size: from few pixels to very large objects
- Any distance detection: short, medium and long range
- Stationnary and/or moving objects detection
- Alarm confirmations:
- Very fast moving objects
- Short range
- Discontinuous visibility due to obstacles (foliage, trees…)
- Very low false alarm rate in complex conditions:
- Moving vegetation,
- Animals,
- High sea state,
- Sun glints…
- Improved target range assessment
- Multiple classes available: human, vehicle, buoy, RIB, sailing ship…
- Ability to detect humans in any position and/or partially hidden objects
- Scalable customizable algorithm :
- New classes (required for a specific Customer application)
- Algorithm optimization
Alarm management Module
Automatic threats classification according to multiple conditions (GAIA classification, dimensions, trend, intensity, speed, trajectory, target class, size, virtual fence crossing, distance…)
Automatic Alarms to trigger specific actions (recording, email, XML, specific bookmark…)
GAIA Artificial Intelligence is boosted by the I2Q image processing library allowing to achieve superior day/night image quality whatever the environmental conditions. I2Q image processing includes multiple algorithms to improve user experience such as sun glint reduction, smart denoising, local contrast image enhancement and more.
I²QTM Library for smart image enhancement
Original image
(satured zones within the panorama)
I²Q quality enhancement
(no saturation over 360°)
Original image
After I²Q terrestrial pre-processing
Original image
After I²Q distorsion correction
(Image stitching – distorsion correction)
